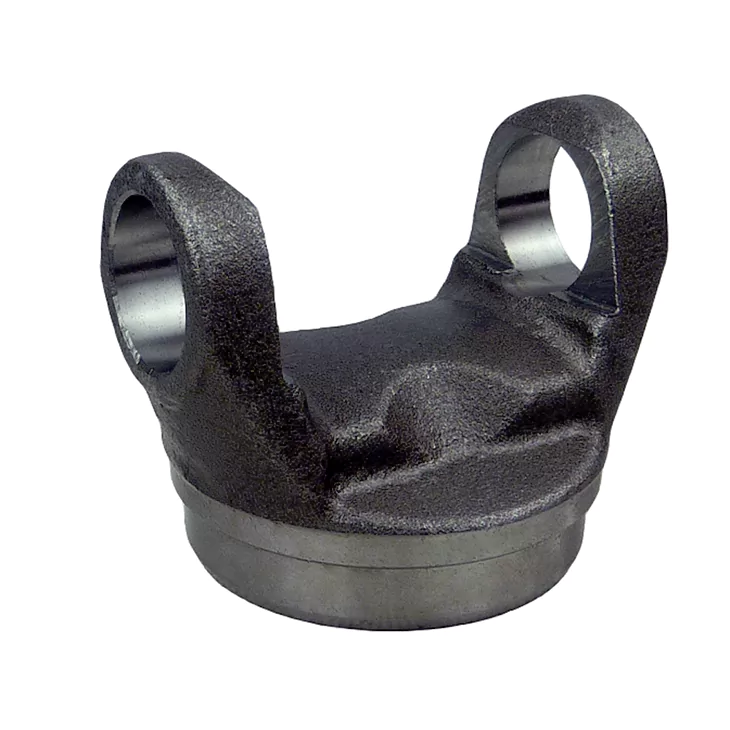

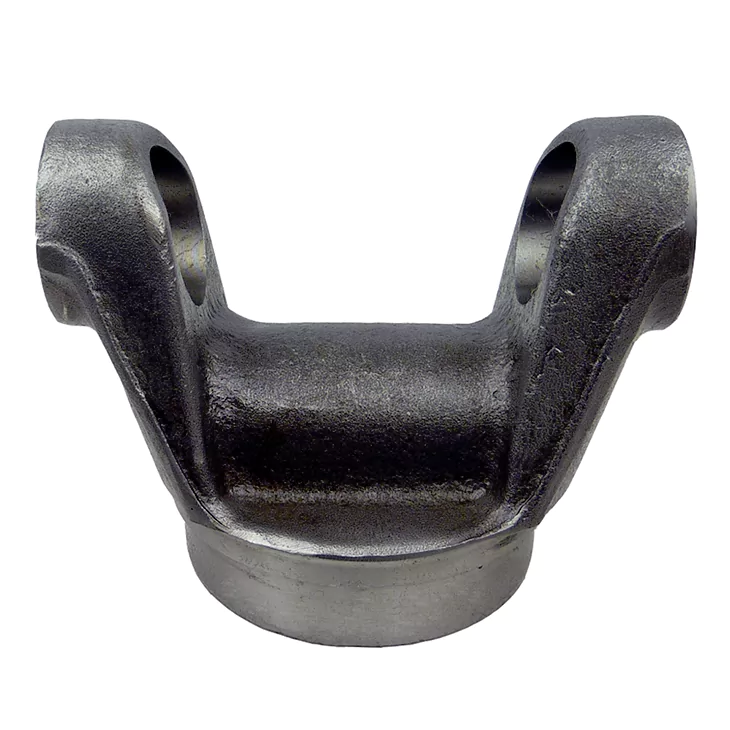

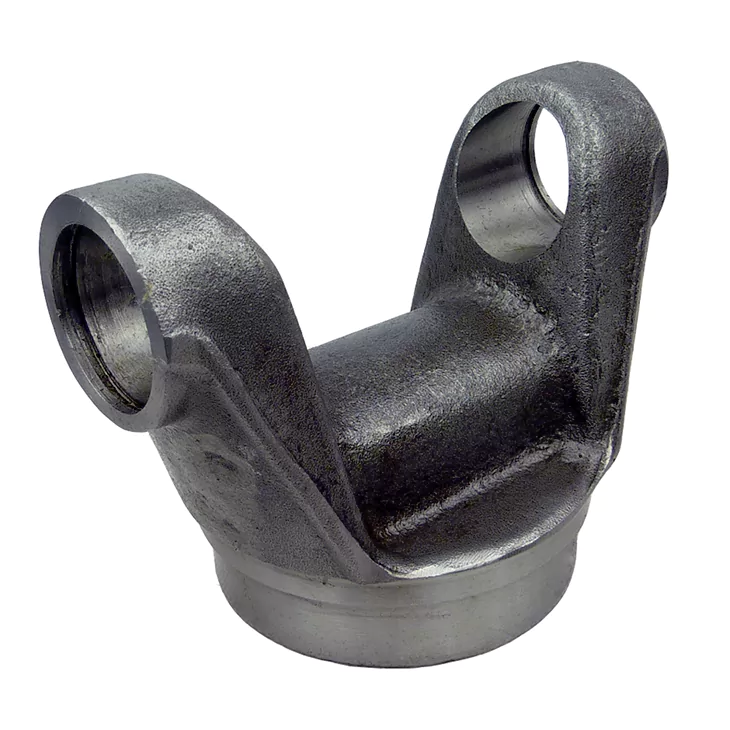

WELD YOKE
- Minimum order quantity (MOQ): 20 pieces.
- Packaging Details: individualĀ PVC bag + Plywood box, or as per customer request.
- Delivery Time: 30-60 days.
- OEM model: For details, see the table below.
- Get samples: Yes, it is ok.
- Warranty: 1 year.

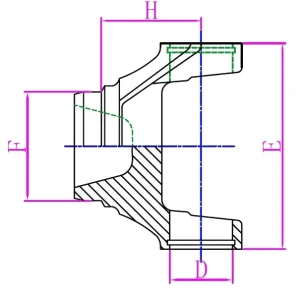

Parameter Table
| HZSP No. | A | B | C | D | Reference No. | U-joint |
|---|---|---|---|---|---|---|
| HZ26-118 | 67 | 98 | Ļ38 | Ļ64.10 | 26-118 | 5-12213X 62*38 |
| HZ2-28-1697 | 44.5 | 88 | Ī¦27 | Ī¦72.3 | 2-28-1697 | 5-273X 94.9*27 |
| HZ3-28-537 | 53 | 113 | Ļ34.90 | Ļ84.9 | 3-28-537 | 5-263X SPL55-1X 109.05*34.9 |
| HZ4-28-307 | 56.4 | 134 | Ļ34.90 | Ļ84.30 | 4-28-307 | 5-275X 5-155X 129*34.9 |
| HZ5-28-327 | 77.9 | 134.85 | Ī¦47.65 | Ļ95 | 5-28-327 | 5-438X 134.85*47.65 |
| HZ26-135 | 76 | 159 | Ļ44 | Ļ81.4 | 26-135 | 5-12276X 152.45*44 |
| HZ26-163 | 86 | 171.6 | Ļ49.98 | Ļ85.5 | 26-163 | 5-12278X 167.95*49.98 |
| HZ26-215C | 95 | 171.6 | Ļ48.00 | Ļ85.5 | 26-215C | 5-12062X 164.55*48 |
| HZ4-28-637 | 58 | 133.5 | Ļ34.90 | Ļ81.4 | 4-28-637 | 5-155X 129*34.9 |
| HZ3205 | 115 | 162.1 | Ļ57 | Ļ98 | Spicer 3205 | 5-12932X 155.85*57 |
| HZ2-28-437 | 43.4 | 88.6 | Ļ27 | Ī¦72.3 | 2-28-437 | 5-153X 84.65*27 |
| HZ2-28-327 | 43.4 | 88.6 | Ļ27 | Ļ73.2 | 2-28-327 | |
| HZ2-28-357 | 43.2 | 88 | Ļ27 | Ļ46.87 | 2-28-357 | 5-153X 84.65*27 |
| HZ90-28-27 | 74.3 | 137 | Ī¦41.2 | Ļ95 | 90-28-27 | SPL90-1X 130.65*41.26 |
| HZ26-227 | 100.5 | 129.8 | Ļ45.05 | Ļ82.1 | 26-227 | 5-12100X 122.75*45.05 |
| HZ3-28-97 | 54 | 113 | Ļ30.16 | Ļ72.3 | 3-28-97 | 5-160X 109.15*30.16 |
| HZ3-28-267 | 54 | 113 | Ļ30.16 | Ī¦71.4 | 3-28-267 | 5-160X 109.15*30.16 |
| HZ6.5-28-117 | 85.8 | 191.7 | Ļ49.23 | Ī¦107.54 | 6.5-28-117 | 5-281X 5-510X |
| HZ6.5-28-127 | 85.8 | 191.7 | Ļ49.23 | Ļ101.9 | 6.5-28-127 | 5-281X |
| HZ3-28-367 | 53.97 | 115 | Ļ30.16 | 85.77 | 3-28-367 | |
| HZ3-28-557 | 54 | 115 | Ļ30.16 | 84.937 | 3-28-557 | 5-160X 109.15^30.16 |
| HZ6.3-28-17 | 6.3-28-17 |
*Disclaimer: The brand names and specifications mentioned on this page are for reference only to aid product selection. Our products are aftermarket replacement parts, not OEM parts. And they are fully interchangeable with OEM parts. We are not affiliated with the original brands.
Product Description

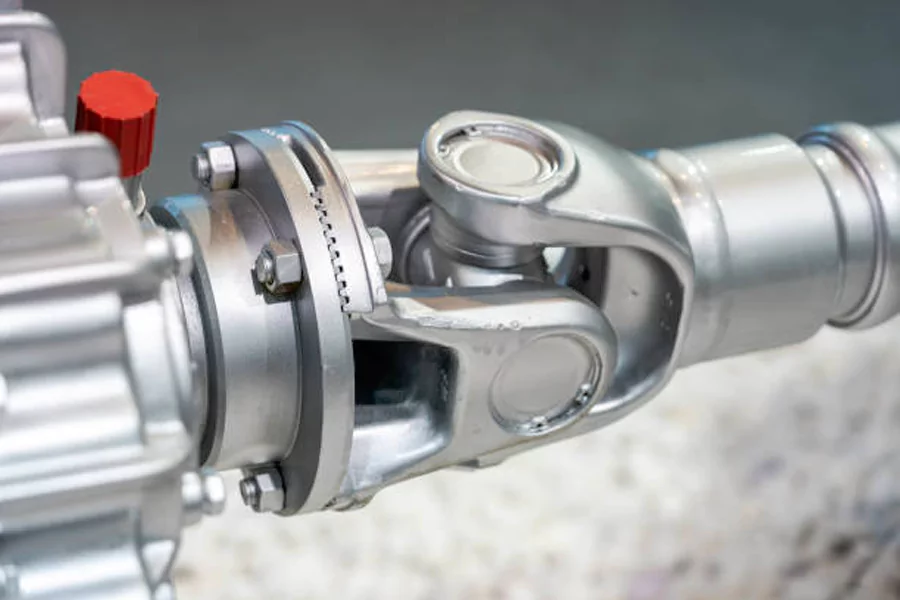

A weld yoke, commonly referred to as a ātube yokeā, is a simple but critical component of any drive shaft. The technical definition of a weld yoke is a yoke with a piloting hub for attachment of a tube. The weld yoke is typically pressed onto the tube, along with the tube shaft, in one process.
We could supply products by customization, just as Size, Marking, Packing, Color, Tolerance etc..
Please send your drawing, picture or other detail information to us.
Why Choose Us
- Strong production capacity: two modern factories totaling over 40,000 square meters. We have over 25 years of experience in the industry.
- Diversified Product Range: universal joint, weld yoke, slip yoke, flange yoke, end yoke, stub shaft, yoke shaft, splined yoke, companion flange, splined sleeves, center supporting bearing, auto drive shaft assembly, etc.
- Certifications: ISO/TS 16949: 2009, ISO 9001, CE, CCC.
- Vertical Integration: We maintain long-term strategic partnerships with multiple renowned local raw material suppliers. By leveraging a diversified sourcing network, we ensure resilient delivery capabilities and minimize supply chain risks.
- Quality Control: Utilize 3D CMM (Coordinate Measuring Machines), hardness testers, and torque testers for dimensional accuracy, and performance validation. Under extreme conditions, our drive shafts have undergone fatigue testing and withstood over 500,000 cycles.
FAQ
Yes, we maintain aĀ large stock (500,000 units)Ā to fulfill your orders promptly. Whether you need bulk items or specific parts, our extensive inventory allows for fast and reliable delivery, ensuring your production stays on track.
Yes, we can provide samples for you, whether itās a standard product or a custom product. However, we will charge for custom products based on the specific requirements.
You can contact us directly. Providing details about the products you need, such as specifications, material, color, processing method, and packaging, will help us provide you with a wholesale quote more efficiently.
Yes, we offer customization services. Please provide size, marking, packing, color, tolerance and application details. Please send the drawing if you have.
No, we offer worldwide shipping. However, in rare cases where the shipping company is unable to fulfill the delivery, we apologize for any inconvenience this may cause.
Our payment method: T/T, WEST UNION, PAYPAL.
All our products come with a 1-year warranty covering manufacturing defects.
