STUB SHAFT
- Minimum order quantity (MOQ): 20 pieces.
- Packaging Details: individualĀ PVC bag + Plywood box, or as per customer request.
- Delivery Time: 30-60 days.
- OEM model: For details, see the table below.
- Get samples: Yes, it is ok.
- Warranty: 1 year.
Parameter Table
| HZSP No. | A | B | C | D | Spicer No. | Teeth No. |
|---|---|---|---|---|---|---|
| HZ3-40-1901 | 180 | 72.3 | 67.00 | 38.03 | 3-40-1901 P112 | 16 |
| HZ3-53-1811 | 123 | 72.3 | 51.00 | 38.06 | 3-53-1811 | 10 |
| HZ40-1445 | 247 | 64 | 175.00 | 50.75 | 40-1445 P185 | 16 |
| HZ54-442C | 166 | 64 | 70.00 | 40 | 54-442C | 14 |
| HZ54-556C | 178 | 82 | 85.00 | 55 | 54-556C Pu096 | 26 |
| HZ4-40-761 | 190 | 84.3 | 84.00 | 44.4 | 4-40-761 | 16 |
| HZ5-40-1051 | 277 | 95.05 | 115.00 | 50.75 | 5-40-1051 | 16 |
| HZ6-40-621 | 299.5 | 107.7 | 111.50 | 63.45 | 6-40-621 | 16 |
| HZ6.5-40-191 | 320 | 107.8 | 114.00 | 76.16 | 6.5-40-191 | 16 |
| HZ8-40-101 | 326 | 101.7 | 114.00 | 76.16 | 8-40-101 | 16 |
| HZ40-1723 HZ40-469 | 281 | 84.45 | 126.00 | 61.98 | 40-1723 40-469 | 12 |
| HZ250-53-11 | 163 | 120.55 | 75.00 | 59.25 | 250-53-11 | 46 |
| HZ90-53-11 | 133 | 95.05 | 55.00 | 44.53 | 90-53-11 | 34 |
| HZ3-40-1571 | 188 | 84.90 | 75.00 | 39.9 | 3-40-1571 | 16 |
| HZ40-1722 | 258 | 81.25 | 105.00 | 50.8 | 40-1722 | 16 |
| HZ3-53-451 | 232 | 84.35 | 152.00 | 39.9 | 3-53-451 (5007832) | 16 |
| HZ4-53-61 | 234 | 84.35 | 151.00 | 44.4 | 4-53-61 P171 | 16 |
| HZ40-1560 | 298.5 | 82.00 | 220.00 | 63.4 | 40-1560 | 16 |
| HZ3-53-1371 | 193.8 | 7230 | 113.50 | 34.85 | 3-53-1371 | 16 |
| HZ3-53-1361 | 223 | 72.35 | 128.00 | 34.9 | 3-53-1361 | 16 |
| HZ53-1443 | 204 | 84.90 | 120.00 | 38.05 | 53-1443 P152 | 16 |
| HZ40-1408 | 136 | 46.80 | 56.00 | 31.7 | 40-1408 | 16 |
| HZ90-40-11 | 279 | 95.05 | 100.00 | 49 | 90-40-11 | 30 |
| HZ5-40-1011 | 246 | 82.55 | 88.9 | 50.75 | 5-40-1011 | 16 |
| HZ6-40-521 | 268.2 | 95.1 | 101.6 | 63.5 | 6-40-521 | 16 |
| HZ6-53-201 | 130.9 | 95.1 | 73 | 49.7 | 6-53-201 | 10 |
| HZ2-53-501 | 203 | 72.3 | 134.5 | 34.9 | 2-53-501 | 16 |
| HZ40-612 | 232.7 | 93.7 | 102.6 | 63.3 | 40-612 | 16 |
| HZ3-53-1031 | 181 | 71.6 | 112.7 | 38.05 | 3-53-1031 | 16 |
| HZ2-M53-003 HZ2-53-661 | 173.5 | 73.15 | 113 | 34.4 | 2-M53-003 2-53-661 | 16 |
| HZ3-M53-008 HZ3-M53-008X | 182 | 97.7 | 121.5 | 38 | 3-M53-008 3-M53-008X | 16 |
| HZ3-53-1821 HZ3-53-431 | 103 | 85 | 51 | 38 | 3-53-1821 3-53-431 | 10 |
| HZ4-53-341 | 105 | 84.3 | 44.4 | 10 | ||
| HZ3-53-1881 | 3-53-1881 | 10 | ||||
| HZ3-53-1741 | 3-53-1741 | 16 | ||||
| HZ6-40-541 | 6-40-541 | 16 | ||||
| HZ4-53-361 | 4-53-361 | |||||
| HZ6-53-421 | 6-53-421 | 38 | ||||
| HZ6.5-53-21 | 6.5-53-21 | |||||
| HZ6.5-53-171 | 6.5-53-171 | |||||
| HZ6.5-53-91 | 6.5-53-91 |
*Disclaimer: The brand names and specifications mentioned on this page are for reference only to aid product selection. Our products are aftermarket replacement parts, not OEM parts. And they are fully interchangeable with OEM parts. We are not affiliated with the original brands.
Product Description
What is a stub shaft?

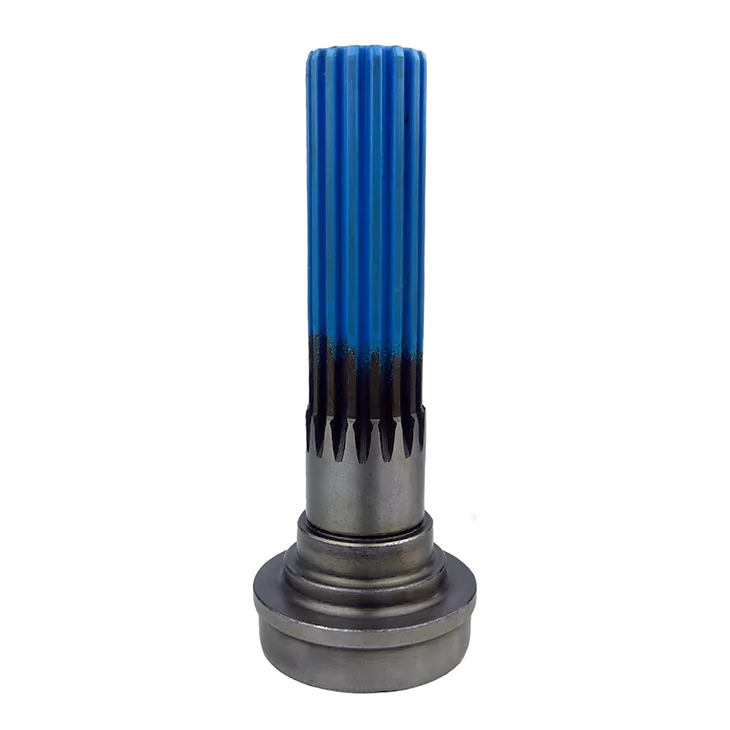

A stub shaft is a drive shaft component that is used with a slip yoke, which in turn allows for axial movement. Most stub shafts have blue colored splines. That blue color is often referred to as glidecoat, which is a nylon coating that is used to prevent premature wear of the part.
There are a few interchangeable terms for stub shafts: ātube shaftsā, āslip stubsā, and āstubsā. All of these terms are used throughout the industry to help identify the large array of stub shafts available on the market. They come in an assortment of dimensions to compensate for the different strengths needed in the infinite amount of applications that they are used in.
What is the function of stub shafts?
These stub shafts, supported by bearings, enable side loading at the rear of an engine without transferring the load to the crankshaft. Since many industrial engines are not designed to handle side loads on their crankshaftsāespecially in pulley-driven setupsāthis provides an effective workaround to a widespread challenge.
We can provide customized products based on your requirements, including size, marking, packaging, color, tolerance, material, and more.
Please feel free to send us your drawings, photos, or any other detailed information.
Why Choose Us
- Strong production capacity: two modern factories totaling over 40,000 square meters. We have over 25 years of experience in the industry.
- Diversified Product Range: universal joint, weld yoke, slip yoke, flange yoke, end yoke, stub shaft, yoke shaft, splined yoke, companion flange, splined sleeves, center supporting bearing, auto drive shaft assembly, etc.
- Certifications: ISO/TS 16949: 2009, ISO 9001, CE, CCC.
- Vertical Integration: We maintain long-term strategic partnerships with multiple renowned local raw material suppliers. By leveraging a diversified sourcing network, we ensure resilient delivery capabilities and minimize supply chain risks.
- Quality Control: Utilize 3D CMM (Coordinate Measuring Machines), hardness testers, and torque testers for dimensional accuracy, and performance validation. Under extreme conditions, our drive shafts have undergone fatigue testing and withstood over 500,000 cycles.
FAQ
Yes, we maintain aĀ large stock (500,000 units)Ā to fulfill your orders promptly. Whether you need bulk items or specific parts, our extensive inventory allows for fast and reliable delivery, ensuring your production stays on track.
Yes, we can provide samples for you, whether itās a standard product or a custom product. However, we will charge for custom products based on the specific requirements.
You can contact us directly. Providing details about the products you need, such as specifications, material, color, processing method, and packaging, will help us provide you with a wholesale quote more efficiently.
Yes, we offer customization services. Please provide size, marking, packing, color, tolerance and application details. Please send the drawing if you have.
No, we offer worldwide shipping. However, in rare cases where the shipping company is unable to fulfill the delivery, we apologize for any inconvenience this may cause.
Our payment method: T/T, WEST UNION, PAYPAL.
All our products come with a 1-year warranty covering manufacturing defects.
