How to Measure a Flange Yoke Correctly for Replacement
A flange yoke connects a driveshaft to a companion flange on a differential, transfer case, or transmission output shaft. Correct measurement is essential when replacing a flange yoke, because incorrect bolt patterns, pilot diameters, or U-joint dimensions can cause vibration, misalignment, or installation failure.
Flange yokes are commonly used in automotive driveshafts, heavy-duty trucks, agricultural drivelines, and industrial power transmission systems.
Before measuring, identify whether the yoke uses a male pilot or female pilot design, and confirm whether it is a fixed flange yoke or slip-style assembly.
Common Types of Flange Yokes
Different driveline systems use different flange yoke designs. The most common types include:
Male Flange Yoke
A male flange yoke has an extended pilot that fits into the mating companion flange for alignment.
Female Flange Yoke
A female flange yoke contains a recessed pilot hole that accepts the mating flange pilot.
Fixed Flange Yoke
A fixed flange yoke bolts directly to the companion flange and does not move during operation.
Slip Flange Assembly
Slip-style assemblies allow axial movement to compensate for driveshaft length changes during suspension travel.

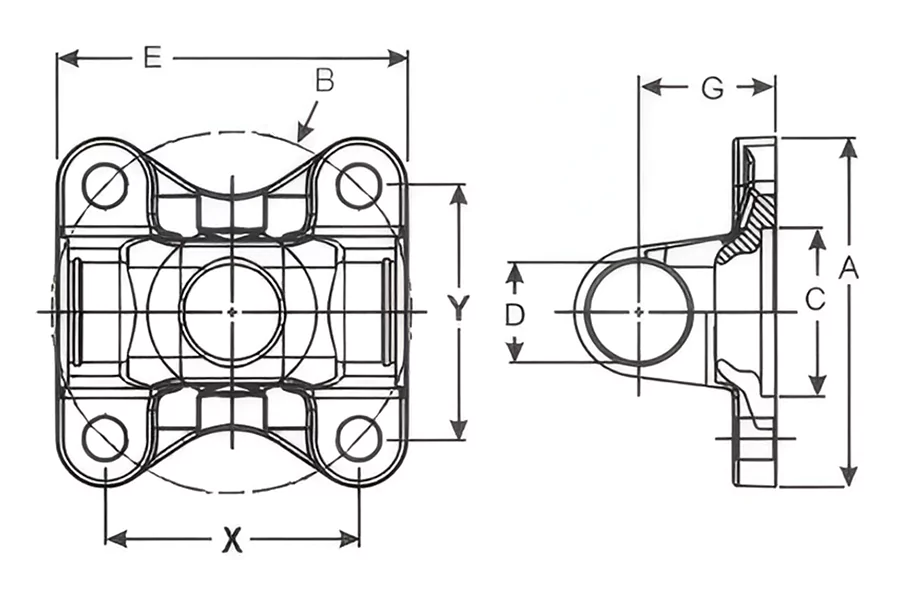

Steps to Measure a Flange Yoke
1. Identify the yoke type
Check if your driveshaft end is male (sticks out) or female (has a hole). Also note if it is a slip yoke or a fixed flange yoke. This dictates the measurements needed.
2. Measure the Bolt Circle Diameter (BCD)
The bolt circle diameter (BCD) is the diameter of the imaginary circle passing through the center of all bolt holes.
Use a caliper or ruler to measure from the center of one bolt hole to the center of the opposite hole. For rectangular flange patterns, measure both horizontal and vertical spacing to confirm the bolt layout.
Accurate BCD measurement is critical for matching the flange yoke to the companion flange.
3. Measure the Pilot Diameter
The pilot diameter centers the flange yoke on the mating flange and helps maintain driveshaft alignment during rotation.
- For male flange yokes, measure the outside diameter of the pilot register.
- For female flange yokes, measure the inside diameter of the pilot bore.
Incorrect pilot dimensions may cause vibration or improper flange centering.
4. Measure the bolt hole size and pattern
Look at each bolt hole to see if it has threads or is smooth. If it has threads, write down the thread size like M10. If the hole is smooth, measure how wide it is. Also note how the holes are arranged. Also note the hole pattern: square or rectangular.
5. Common Flange Bolt Patterns
Several bolt patterns are commonly used in driveshaft systems:
| Bolt Pattern | Typical Application |
|---|---|
| 4-Bolt Square | Passenger vehicles |
| 4-Bolt Rectangular | Light truck drivelines |
| 6-Bolt Flange | Heavy-duty truck and industrial systems |
Always verify bolt spacing and pilot dimensions before ordering a replacement flange yoke.
6. For female flange yokes, measure the U-joint cap and ear width
Female flanges have a recessed area that holds the U-joint caps. Measure the cap diameter and the width between the yoke ears where the U-joint sits.
7. Determine the U-joint series
After measuring the flange yoke, identify the corresponding U-joint series by checking:
- Bearing cap diameter
- Distance between yoke ears
- Overall flange dimensions
Common driveshaft series include 1310, 1330, 1350, and 1410.
| Series | Typical Cap Diameter | Application |
|---|---|---|
| 1310 | 1.062″ | Passenger vehicles |
| 1330 | 1.062″ | Light trucks |
| 1350 | 1.188″ | Heavy-duty driveshafts |
| 1410 | 1.188″ | Industrial and agricultural drivelines |
Measurement Tips
- Clean rust, grease, and debris before measuring.

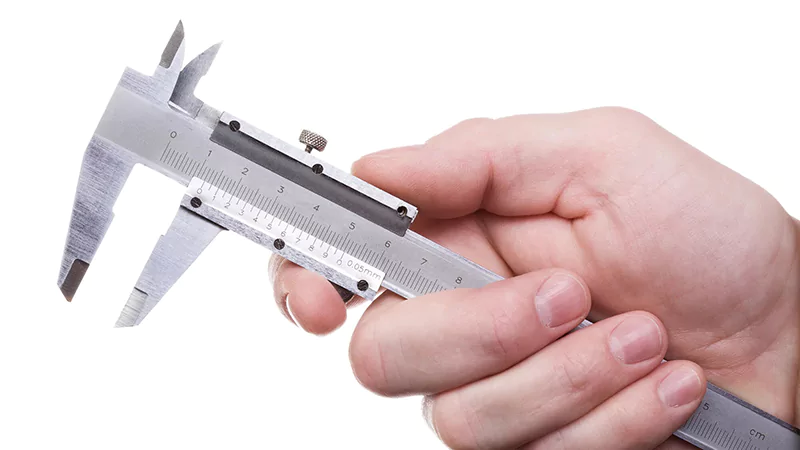

- Use calipers for accurate pilot and bolt-hole measurements.
- Measure all dimensions twice before ordering replacement parts.
- Verify dimensions against the manufacturer’s specification sheet whenever possible.
- Inspect the flange face for wear or deformation before installation.
FAQ
How do I measure bolt circle diameter on a flange yoke?
Measure from the center of one bolt hole to the center of the opposite bolt hole.
What happens if the pilot diameter is incorrect?
Incorrect pilot dimensions may cause driveline vibration, improper centering, or installation problems.
Can I replace a 1310 flange yoke with a 1350 series?
Only if the U-joint dimensions and companion flange specifications are compatible.
