Driveshaft Specification Sheet: What Buyers Should Require

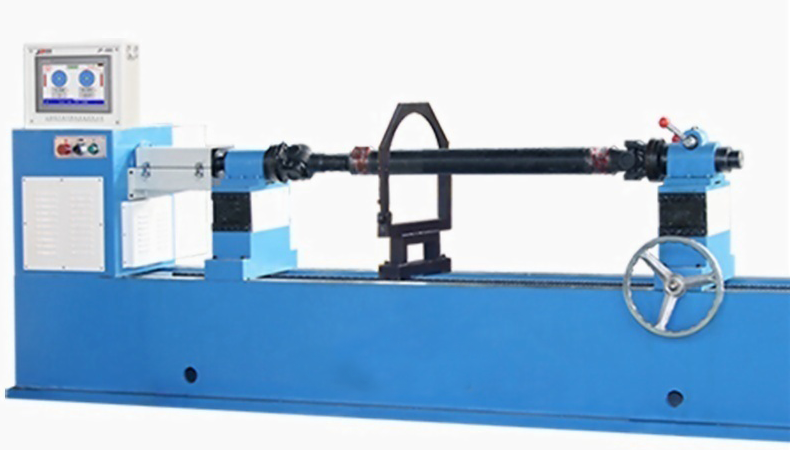

When purchasing a custom or replacement driveshaft in 2026, buyers must insist on a complete, test-backed specification sheet from their supplier. Below I expand your framework into a supplier-ready, SEO-friendly blog that embeds the most important driveshaft-related keywords (driveshaft, u-joint / universal joint, flange yoke, slip yoke, spline, critical speed, center support bearing, balancing, runout) and cites authoritative sources where appropriate.

In lifted or off-road vehicles, the increased driveline angle can cause vibration and accelerated wear when using a traditional slip yoke. A Slip Yoke Eliminator (SYE) converts the transfer case output from a sliding slip yoke to a fixed flange or fixed yoke.

Once an SYE is installed, the vehicle can use a Flange Yoke combined with a Double Cardan (CV) driveshaft, which significantly improves driveline stability, reduces vibration, and increases overall durability in high-angle conditions.

1) Mechanical ratings & performance limits — what to demand and why

Torque capacity (continuous & peak)

Ask suppliers for both the continuous operating torque rating and the maximum peak (yield) torque. The selected U-joint/driveshaft series and tube construction must have published torque margins larger than the vehicle’s maximum operating torque to avoid permanent deformation or failure. Suppliers such as Dana publish application guidelines that explicitly require the chosen series’ torque capacity to equal or exceed the application torque.

Critical speed

Critical (bending) speed is the RPM where the shaft will begin to resonate and “whip.” For safety and longevity, specify that the driveshaft’s operating RPM range be at least 15–20% below the calculated critical speed for the assembled shaft/tube configuration. Industry guidance and driveline tech references emphasise keeping operating speeds under this limit to avoid destructive vibration.

Operating angles (U-joint angles)

Require the supplier to list the maximum and normal working angles (in degrees) for the universal joints used. For long life and minimal wear, aim for nominal operating angles near or below 2° where practicable; document allowable peak angles for service conditions as well. (High operating angles accelerate wear and reduce U-joint life—see manufacturer application guidance.)

Shock / transient loads

If the vehicle sees frequent shock loads (towing, off-road, agricultural duty), request explicit design margins or transient torque ratings and any shock-load mitigation features (tuned slip-yokes, isolators, or coupling types).

2) Precise physical dimensions — make fitment fail-safe

Total installed length

Specify how length is measured (e.g., center-to-center of U-joints for slip driveshafts, or flange face-to-face for flanged driveshafts). A clear measurement convention prevents mismatched deliveries.

Tube/tubing details

Require: material (e.g., 6061 aluminum, 4130 chromoly, carbon fiber), outer diameter, wall thickness, heat-treatment or tempering, welding method, and ID/OD tolerances. Material choice affects critical speed, inertia and fatigue life.

Splines and mating features

List spline count, major/minor diameter, engagement length, and tolerance class. If the shaft must mate to a transmission or PTO spline, include the OEM drawing or the transmission part number.

Connector geometry

Specify flange face detail, bolt circle, bolt size, yoke types (full-round vs half-round), seal diameters, and any lubricant fittings (zerk) locations.

The Role of a Slip Yoke Eliminator (SYE)

Which One Should You Use?

Selection Checklist

Before choosing between a slip yoke and a flange yoke, consider:

  • Suspension travel and lift height

  • Required torque capacity

  • Available driveshaft length and space

  • U-joint type and operating angles

  • Intended vehicle use (daily driving, towing, off-road, commercial duty)

These factors directly influence which yoke style will deliver the best performance and service life.

Maintenance Considerations

  • Slip Yoke:
    Regular lubrication of the splines and inspection of the output seal help prevent wear and driveline vibration.

  • Flange Yoke:
    Ensure proper bolt torque and flange alignment. When used with Double Cardan shafts, driveline angles should be checked after installation.

Final Thoughts

There is no universally “better” option—only the right choice for your application.

    • Use a Slip Yoke for simplicity and flexibility in standard driveline systems.

    • Choose a Flange Yoke when strength, durability, and driveline control matter more than sliding capability.

About HZSP

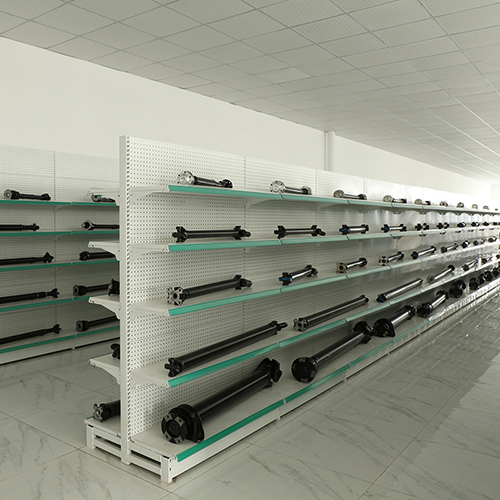

HZSP supplies a full range of Slip Yoke and Flange Yoke solutions for automotive and industrial driveline applications. From factory-style replacements to heavy-duty and custom configurations, HZSP supports customers with reliable components and practical engineering guidance. Whether you are maintaining a standard vehicle or building a reinforced driveline for demanding conditions, HZSP can help you select the right yoke configuration to match your performance and durability requirements.
